MLTrigSetEdge

 Function A function calculates a result according to the current value of its inputs. A function has no internal data and is not linked to declared instances. - Sets the edge configuration for a trigger block (e.g., rising, falling, etc.)

Inputs

Input	Data Type	Range	Unit	Default	Description
BlockID	DINT	-2147483648 to 2147483647	N/A	No default	ID number of the trigger block.
Edge	DINT	0, 2	N/A	1 (rising edge The transition of a digital signal from low to high. AKA: positive edge.)	The edge to trigger on. 0 = disable Removal of the ENABLE signal. Disables power stage. the Fast Input The inputs are taken into account at each cycle depending on the system periodicity (i.e., each millisecond). Under certain circumstances, this can be insufficient when more accuracy is needed or if a quick response is required from the system. To fill the gap, a drive may have some Fast Input connections (generally one or two). When an event happens that triggers a Fast Input (e.g., when a sensor sends a rising edge), the detection of a signal occurs faster. This can be 1000 times more accurate than the system periodicity. The timestamp associated with this input can be provided to the IPC to take corrective action.. 1 = rising edge. 2 = falling edge.

Outputs

Output	Data Type	Range	Unit	Description
Q	BOOL	FALSE, TRUE	N/A	TRUE if block executed successfully. FALSE if execution is not successful.

Remarks

•


• This function or function block A function block groups an algorithm and a set of private data. It has inputs and outputs. returns cached data.
  See Program a Multi-Core Controller.

• This block should be called prior to calling MLAxisCfgFastIn.
• The value at the Edge input must match the value at MLAxisCfgFastIn’s Mode input.

Fast Homing - Inputs

See these topics for more information:

• Fast Homing Example with the Pipe Network Motion Engine Axis Pipe Block
• Fast Homing Example with the PLCopen Motion Engine
• Fast Inputs with Pipe Network Motion
• Pipe Network Registration and Fast Homing
• Registration Position Capture Example with Pipe Network Trigger Block

FBD Language Example

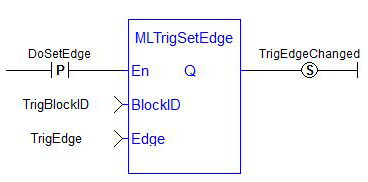

FFLD Language Example

IL Language Example

Not available.

ST Language Example

TrigEdgeChanged := MLTrigSetEdge (TrigBlockID,TrigEdge);
