MC_MachRegist

Description

This function block enables Mark-to-Machine registration.

It is used on any servo or digitizing axis and with any move type.
It is used most frequently in master/slave applications.

Used with ...	Effect
Non-slave moves	Resets the axis position when a good mark is captured by the fast input The inputs are taken into account at each cycle depending on the system periodicity (for example each millisecond). Under certain circumstances this can be insufficient when more accuracy is needed, or if a quick response is required from the system. To fill the gap, a drive may have some Fast Input connections (generally one or two). When an event happens that triggers a Fast Input (e.g. when a sensor sends a rising edge), the detection of a signal occurs faster (which can be 1000 times more accurate than the system periodicity). Then the timestamp associated with this input can be provided to the IPC to take corrective action.
Slave moves	Applies a compensation offset to correct for the difference between the target position and the measured position. This provides the ability to compensate for product or process inconsistencies, provides a system that remains synchronized with no accumulated error, and maintains repeatable accuracy throughout the process.

Used with ...

Effect

Non-slave moves

Resets the axis position when a good mark is captured by the fast input The inputs are taken into account at each cycle depending on the system periodicity (for example each millisecond). Under certain circumstances this can be insufficient when more accuracy is needed, or if a quick response is required from the system. To fill the gap, a drive may have some Fast Input connections (generally one or two). When an event happens that triggers a Fast Input (e.g. when a sensor sends a rising edge), the detection of a signal occurs faster (which can be 1000 times more accurate than the system periodicity). Then the timestamp associated with this input can be provided to the IPC to take corrective action.

Slave moves

Applies a compensation offset to correct for the difference between the target position and the measured position.

This provides the ability to compensate for product or process inconsistencies, provides a system that remains synchronized with no accumulated error, and maintains repeatable accuracy throughout the process.

A positive transition of the En input starts registration.
- The application may change the registration parameters while registration is active by changing the input values and causing another positive transition of the En input.
- The function block then reads and applies the new values.
The axis number at the Axis input indicates the axis whose position, at the fast input, is used to determine if the mark is a good mark.
The Distance, Tolerance, and Ignore inputs are used to determine whether or not the registration mark is good.
- For a mark to be recognized as good, it must be outside of the Ignore distance and the correct Distance from the previous mark +/- the Tolerance window.
- A mark is bad if it occurs outside of the “good tolerance band” and is not ignored.
- Both good marks and bad marks are recognized as marks, ignored marks are not recognized.
- If all marks are to be recognized as good marks, enter 0 (zero) at both Distance and Tolerance.
The Distance value defines the distance between good marks.
- In Clear Lane and Product registration the Distance input value is typically the same as the Target input value.
- In Print registration, the Distance is typically not the same as Target.
The Tolerance value is the distance, plus and minus, about Distance.
- Marks detected in this window are good marks and registration occurs.
- Marks detected outside this window and outside the Ignore band, are bad marks and registration does not occur.
- This window should be large enough to allow for the worst case error in the distance between the previous mark and the current mark.
The Ignore value defines the distance from the previous mark where all marks detected by the fast input are ignored.
- This is crucial when registering products that do not have Clear Lane registration marks.
The Target input is the expected target position that is used to calculate how much registration compensation is to be applied when a registration mark is considered good.
- When a good mark is detected, the position of the PosAxis is compared to the Target position to calculate a correction.
- The registration correction is only applied with master/slave move types.
The Position input is the position value the registration Axis position is reset to when a good registration mark is detected.
When a good mark occurs, the position of the PosAxis is compared to the Target position and used to calculate the amount of registration compensation to apply to the CompAxis.
- Registration compensation is applied to the axis specified at the CompAxis input under these conditions:
- If CompAxis is a master axis, the compensation is applied to the master offsets of all its slaves.
  - This shifts the master’s position as seen by its slaves.
- If CompAxis is executing a slave move (e.g., MC_GearIn or MC_CamIn), the compensation is applied directly to the axis.
The PosTolerance input is the distance, plus and minus, about the Target position used to determine if compensation is applied.
- When a good mark occurs, the position of the PosAxis axis is checked to see if it lies in the window defined by PosTolerance.
  - If it is in the window, compensation is applied.
  - If it is outside the window, compensation is not applied even though a good mark was found.
If PosAxis and CompAxis are different axes, the RatioNumerator and RatioDenominator inputs define the conversion factor for calculating the compensation value.
- This is needed because the amount of error between actual and target positions is determined by the PosAxis's position and the compensation is applied to the CompAxis.
- The RatioNumerator should typically be the number of User Units of CompAxis motion for one registration cycle.
- The RatioDenominator should typically be the number of User Units of PosAxis motion for one registration cycle.
- If PosAxis and CompAxis are the same, RatioNumerator and RatioDenominator should be the same value, thus resulting in a 1:1 ratio.
The Option input defines various modes of operation for registration.
- The first bit, 0001H, selects Absolute or Resetting.
  - This refers to the way the second mark and all subsequent marks are determined to be good marks.
  - With both registration schemes, the very first detected mark is the starting point.
  - With Resetting registration, when the next mark is detected, the position of that mark becomes the starting point for the next good mark detection calculation and so on.
    - The starting point is reset with each good or bad mark.
      - This allows the product to re-synchronize, if necessary, due to process issues (e.g., product shift) etc.
    - Absolute registration determines all good marks based on the very first mark.
      - The position of the second and each subsequent mark is compared to an integer multiple of Distance from the very first mark.
      - This method insures the product always registers to a known fixed distance.
  - The third bit, 0004H, must be 0 (zero).
    - Mark-to-machine registration requires time-based capture.

This function block starts a motion-related action and therefore stores data for calculations and error checking.
See Call Function Blocks Multiple Times in the Same Cycle if using a dual-core controller.

Is this the right function block to use?
See Decide which Function Blocks to Use for Registration and Registration Application Guide.

Arguments

Input

En	Description	Rising edge of EN enables execution
	Data Type	BOOL
	Range	0, 1
	Unit	N/A
	Default	—
Axis	Description	Axis whose position is used to determine a good mark.
	Data Type	AXIS_REF
	Range	The range of .AXIS_NUM is [1,256]
	Unit	N/A
	Default	N/A
TriggerInput	Description	Structure specifying the fast input. The structure elements are: InputIDINT 0 = Touch Probe 1 / Capture Engine 0 1 = Touch Probe 2 / Capture Engine 1 Range is [0,1] DirectionINT 1 = Rising edge 2 = Falling edge 3 = N/A 4 = Toggle between both, falling edge first 5 = Toggle between both, rising edge A rising edge is the transition of a digital signal from low to high. It is also called positive edge first, range = [1,5] TrigIDINT Axis number of the fast input. Zero indicates this trigger axis is to be the same as the Axis input. Range = [0,256] TrigMode INT (TriggerInput.TrigMode) is not presently supported by this function. The TriggerInput.Mode may be supported in a future software version.
	Data Type	TRIGGER_REF
	Range
	Unit
	Default
Distance	Description	This is the expected distance between good marks. Along with Tolerance and Ignore, this value is used to determine if the mark detected by the fast input is a good mark.
	Data Type	LREAL
	Range	When converted to feedback units, the range is [-2⁵¹,2⁵¹-1]. This value must have the same sign as Ignore.
	Unit	User units
	Default	N/A
Tolerance	Description	This value specifies the distance, plus or minus, about Distance to determine if the mark detected by the fast input is a good mark.
	Data Type	LREAL
	Range	When converted to feedback units, the range is [0,2⁵¹-1].
	Unit	User units
	Default	N/A
Ignore	Description	This value specifies the distance after the previous good mark in which any detected marks are ignored.
	Data Type	LREAL
	Range	When converted to feedback units, the range is [-2⁵¹,2⁵¹-1]. This value must have the same sign as Distance.
	Unit	User units
	Default	N/A
Target	Description	This is the target position. This position is compared to the actual position captured by the fast input to determine the amount of registration compensation to apply.
	Data Type	LREAL
	Range	When converted to feedback units, the range is: [-2⁵¹,2⁵¹-1] if PosAxis' rollover value is zero. [0, PosAxis' Rollover Value] if PosAxis' rollover value is non-zero (i.e., ≥ 0 < PosAxis' Rollover Value).
	Unit	User units
	Default	N/A
Position	Description	The position the axis is set to when a good registration mark occurs. If the Inhibit Reference on Good Mark option is specified for the Option argument (see the MC_MachRegist Options Table), then this argument is not used. The position of the axis is not changed when a registration mark is encountered.
	Data Type	LREAL
	Range	When converted to feedback units, the range is: [-2⁵¹,2⁵¹-1] if PosAxis' rollover value is zero. [0, PosAxis' Rollover Value] if PosAxis' rollover value is non-zero (i.e., ≥ 0 < PosAxis' Rollover Value).
	Unit	User units
	Default	N/A
PosAxis	Description	The position of this axis at the time the fast input occurs is compared to the Target position to determine the amount of registration compensation to apply.
	Data Type	AXIS_REF
	Range	The range of .AXIS_NUM is [1,256] The range of .AXIS_NUM is [1,256]
	Unit	N/A
	Default	N/A
CompAxis	Description	The calculated registration compensation is applied to this axis.
	Data Type	AXIS_REF
	Range	The range of .AXIS_NUM is [1,256] The range of .AXIS_NUM is [1,256]
	Unit	N/A
	Default	N/A
PosTolerance	Description	This value specifies the distance, plus or minus, about the Target position to determine if the position is accepted and the compensation value is calculated and applied.
	Data Type	LREAL
	Range	When converted to feedback units, the range is [-2⁵¹,2⁵¹-1].
	Unit	User units
	Default	N/A
RatioNumerator	Description	This value is typically the number of User Units of CompAxis motion for one product cycle. This value is used with RatioDenominator to create a conversion factor for calculating the compensation value when PosAxis and CompAxis are different axes.
	Data Type	DINT
	Range	When converted to feedback units, the range is [1,4294967295].
	Unit	User units
	Default	N/A
RatioDenominator	Description	This value is typically the number of User Units of PosAxis motion for one product cycle. This value is used with RatioNumerator to create a conversion factor for calculating the compensation value when PosAxis and CompAxis are different axes.
	Data Type	DINT
	Range	When converted to feedback units, the range is [1,4294967295].
	Unit	User units
	Default	N/A
Options	Description	Each bit enables / disables an option. The MC_MachRegist Options Table defines the bits. Any bits not defined are reserved. The third bit, 0004H, must be 0 (zero).
	Data Type	UINT
	Range	See the MC_MachRegist Options Table.
	Unit	N/A
	Default	N/A

MC_MachRegist Options Table

MC_MachRegist Options Table
Hexadecimal	Decimal	Option	Description
0001 H	1	Absolute/Resetting	0 = Resetting, 1 = Absolute
0002 H	2	Reserved	0
0004 H	4	Time/position based capture	0 = time based capture, 1 = position based capture
0008 H	8	Inhibit Reference on Good Mark	0 = Perform reference, 1 = inhibit reference When this bit is set, the Position function block argument is unused and the axis position is not changed when a registration mark is encountered.
0010H	16	Inhibit Master Compensation	0 = Perform Master Compensation, 1 = Inhibit Master Compensation
0020H	32	Inhibit Slave Compensation	0 = Perform Slave Compensation, 1 = Inhibit Slave Compensation.

To use Capture Engine 1 modify the input PDOs that are used and add the Latch The control word is used to activate the drive's latch status machine. The latch control word is processed independently of the EtherCAT bus cycle. The status word is used to return the drive's latch status Position 1 parameter.

Outputs

RegistOn	Description	Indicates registration is activated.
	Data Type	BOOL
Aborted	Description	Indicates registration has been terminated by MC_StopRegist.
	Data Type	BOOL
Error	Description	Indicates an invalid input was specified or registration was terminated due to an error.
	Data Type	BOOL
ErrorID	Description	Indicates the error if Error output is TRUE. See the table in PLCopen Function Block ErrorID Output.
	Data Type	INT

MC_MachRegist

Description

Arguments

Input

MC_MachRegist Options Table

Outputs

Related Functions

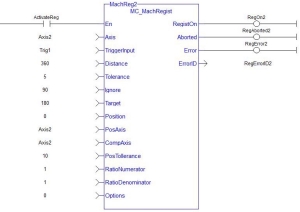

Examples
