EtherCAT Devices

This section provides reference for defining EtherCAT devices. (Figure 1)

• Devices are added by right-clicking the EtherCATentry in the Project Explorer.
• Devices are seen as branches of the EtherCAT item.
• Double-clicking a device opens a tab labeled EtherCAT: [device name].
• See Configure an EtherCAT about the tree entry.

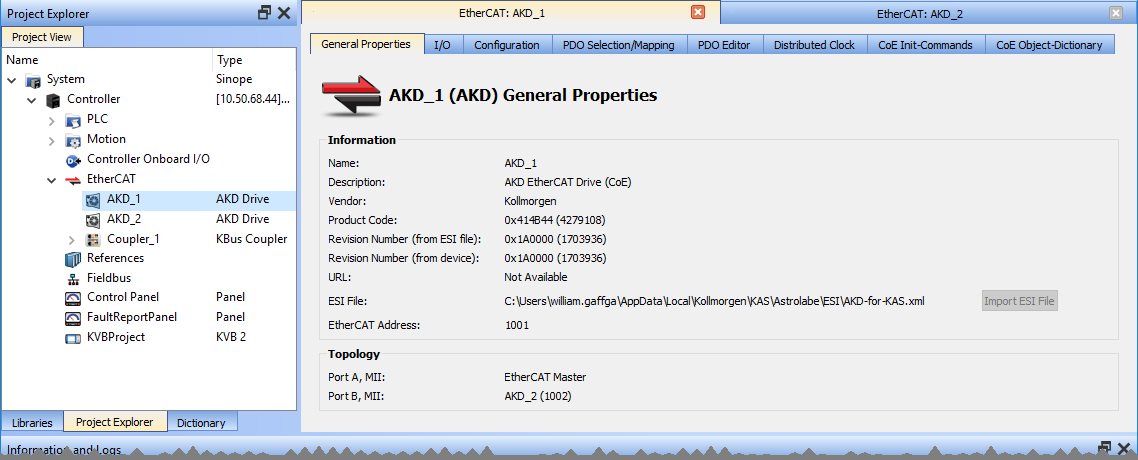

Figure 1: Selected EtherCAT device - General Properties tab
