Motion Status

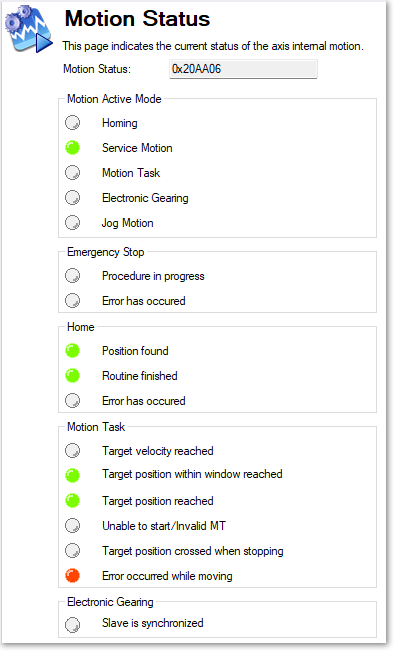

Motion Status allows you to view the current status of an axis' internal motion. An LED indicates the status of various possible motion states (as read by the DRV.MOTIONSTAT parameter). The Motion Status box displays the DRV.MOTIONSTAT output in hexadecimal form. The boxes below Motion Status indicate the axis state. When axis motion is activated, a green LED is shown. When error occurs, a red LED is shown as indicated below:
