Industrial Ethernet Interface Connector X11/X12

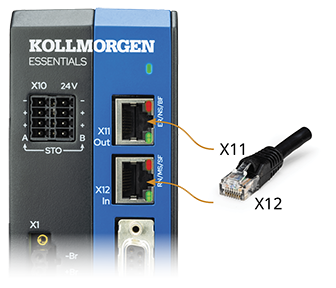

The Industrial Ethernet interface has two RJ45 connectors with two associated LEDs at each port.

RJ45 with built-in green/red bi-color LED EtherCAT® EtherNet/IP™ PROFINET®

Industrial Ethernet interface X11/X12 pinout depends on the protocol used. Refer to the matching fieldbus communication manual.

Link/Activity LED

The link/activity LED at each port is green.

LED	Meaning
Off	no connection
Lit	LINK: connection
Flashes	activity (packets detected)
