MCFB_Jog

 Function - Define to jog an axis in the selected direction at a defined speed.

• This function or function block can be used with PLCopen Motion engines.
• This function or function block is used to command motion in a designated direction at a defined rate.
  • This may be used where continuous motion is required (e.g., a conveyor system or in a setup mode for manually jogging the axis).
• The JogPlus and JogMinus inputs select the direction the motion occurs in.
  • Motion starts when the JogPlus or JogMinus input is TRUE.
    Motion stops when the input is FALSE.
  • Only one of these inputs should be enabled at a time.
  • If both are selected, the motion stops.
• If another motion is active when the jog is requested, that motion is aborted and the jog starts.
• The En input (FFLD editor only) must be high.
  • Typically wired to the rail.

Inputs

Input	Data Type See Data Types.	Range	Unit	Default	Description
En	BOOL	No range	N/A	No default	Enables execution. Used in the FFLD editor only.
AxisID	DINT	No range	N/A	No default	ID of the Axis block. The AxisID selects the axis to jog.
JogPlus	BOOL	0 to 1	N/A	No default	Enables a jog in the plus direction.
JogMinus	BOOL	0 to 1	N/A	No default	Enables a jog in the minus direction.
Speed	LREAL	No range	User units / sec	No default	Rate the axis moves.
Accel Decel	LREAL	No range	User units / sec2	No default	Linear Acc/Dec rate.

Outputs

Output	Data Type See Data Types.	Range	Unit	Description
InMotion	BOOL	FALSE, TRUE	N/A	Jogging is active when TRUE.

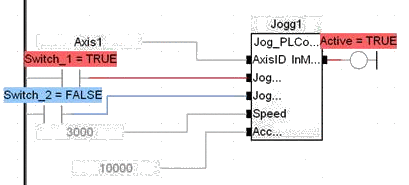

FBD Language Example

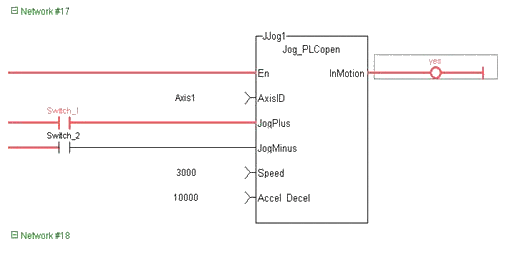

FFLD Language Example

IL Language Example

Not available.

ST Language Example

InMotion := Inst_Jog_PLCopen(Axis1, Switch_1, Switch_2, 600, 10000);

See Also

MLAxisMoveVel
