Controller Boot Startup Script

• After all the previous steps, the startup script starts automatically.
  • The script puts the 7-segment display into Stage 4.
• Before the controller boots up, this flowchart applies to their respective controller.

PCMM2G Flow

See Booting the PCMM2G Controller for more information.

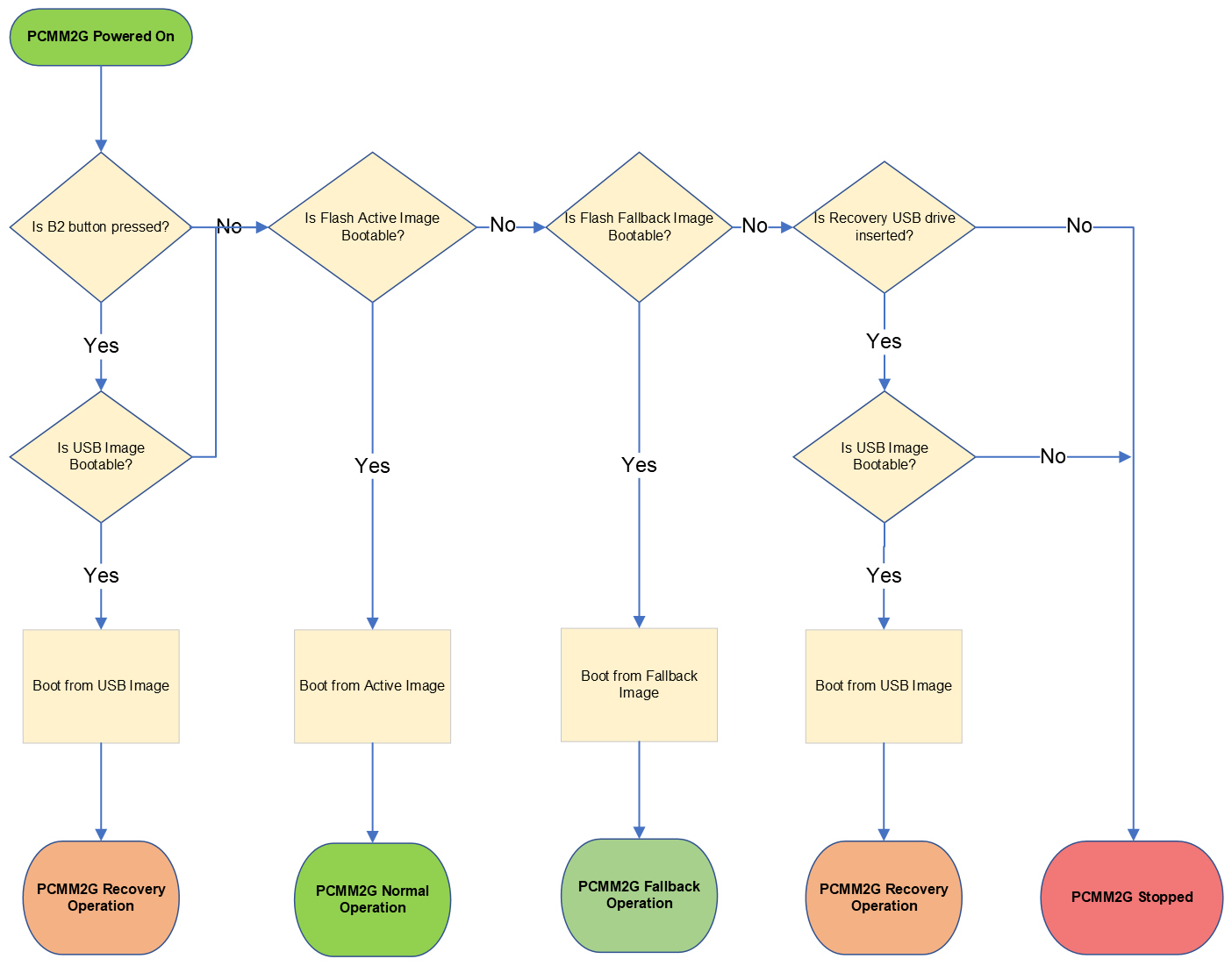

Figure 1: PCMM2G Flow
