Log Messages tabs


    • Log messages provide important information when troubleshooting with KAS-IDE.
    • When reporting an issue to Kollmorgen Support, copy/paste the logs in your report.

Log Messages - Local Log

Log Messages

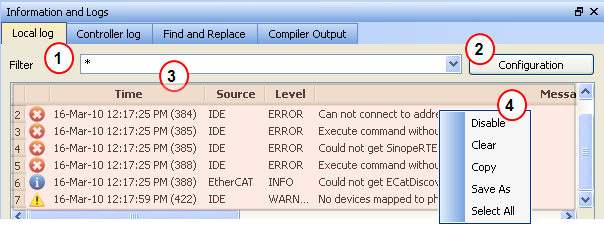

Figure 1: Log Messages - Local Log

Log messages are displayed on two tabs, Local log and Controller log.

  • The Local Log tab shows all messages managed by the KAS-IDE to explain the current state of the system and to help identify any operation errors encountered when developing your system.
  • The Controller Log shows all messages managed by the KAS Runtime.

Based on the configuration settings (see call out ), only messages that are recorded and that match the filter are displayed.


  • The Configuration button is only available on the Controller log tab when the KAS-IDE is connected to a controller.

Log Messages - List of Fields

Every log message in the table widget has this information:

Field

Description

Time

Time when the log was recorded with the format:
DD-MMMM-YY hh:mm:ss (millisecond)

Source

Identifies a software or hardware component issuing the messages. Each source is configured with a specific Level.

Level

Each message has one of the following levels with importance in ascending order:
DEBUG > INFO > WARNING > ERROR > CRITICAL

Message

Text of the message issued from the source

Log Messages - List of Buttons

The table contains a contextual menu (see call out ) with these commands:

Command

Description

Disable/
Enable

You can stop the log recording at any time, so that no more messages are added.

Clear

Empty the list by erasing all the messages already recorded.

Copy

Copy the text of the selected messages to the clipboard (you can perform multi-selection with the Ctrl or Shift keys).

Save As

Save all the messages in a log file.

Select All

Select all the messages that are displayed in the table.
