Hardware Configuration

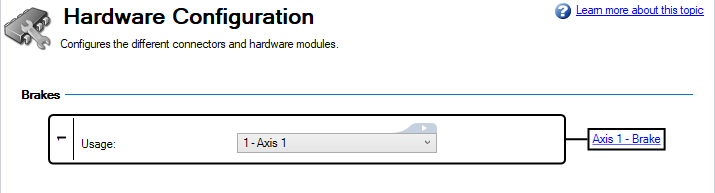

This view shows hardware configurable connections. The X1, X21, and X23 connectors are configured through Express Setup or Device Settings: Power, Feedback, and Digital I/O views.

Type Description Parameter
Brake

Configure the axis the brake is controlled by.

  1. Not Used
  2. Axis 1
 BRAKE#.AXIS
