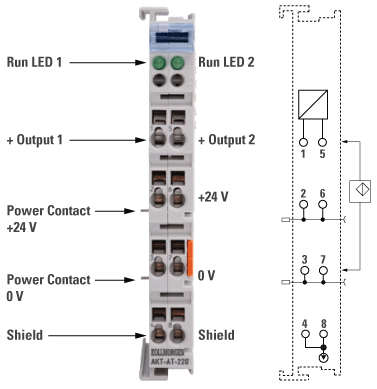

AKT-AT-220-000

General Specifications

2-channel analog output terminals 4 to 20mA.

The 2-channel analog output terminal generates analog output signals in the range from 0 to 20mA.

The power or voltage is supplied to the process level with a resolution The resolution is the smallest possible movement that can be achieved by a system. It can be defined at the electronics, encoder and mechanics level. The distance a stage can be commanded to move in a single step. For servo systems, the basic increment produced by its optical encoder, or any other feedback device. of 12-bits and is electrically isolated.
Ground potential for the output channels of a Bus Terminal is common with the 24VDC supply.
Output stages are powered by the 24VDC supply.
This terminal combines two channels in one housing.
Run LEDs indicate the data exchange with the Bus Coupler.

Electrical and Mechanical Specification	Description
Bit Width in the Process Image	Output: 2 x 16-bit data. Optional: 2 x 8-bit Control / Status.
Configuration	No address or configuration settings.
Conversion Time	~1.5ms
Current Consumption from Standard Bus	Typ. 60mA
Electrical Isolation	500V_rms (Standard Bus / Signal Voltage).
EMC Immunity / Emission	Conforms to EN 61000-6-2 / EN 61000-6-4.
Load	<500Ω
Measuring Error	±0.5 LSB Least significant bit - The lowest bit in a series of numbers in binary; the LSB is located at the far right of a string. Example: In the binary number: 10111001, the LSB is the far right 1. linearity error. ±0.5 LSB offset error. ±0.1 % (relative to full scale value).
Number of Outputs	2
Operating / Storage Temperature	Operating: 0 °C to +55 °C. Storage: -25 °C to +85 °C.
Power Supply	24VDC using the power contacts.
Protect Class / Installation pos.	IP 20 / variable.
Relative Humidity	95%, no condensation.
Resolution	12-bits
Signal Current	0 to 20mA
Vibration / Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27/ 29.
Weight	80 g
