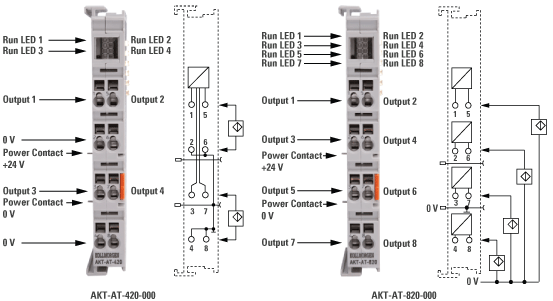

AKT-AT-420-000 / AKT-AT-820-000

General Specifications

4/8-channel analog output terminals 0 to 20mA.

Electrical and Mechanical Specification


Electrical and Mechanical Specification

AKT-AT-420-000

AKT-AT-820-000

Bit Width in the Process Image

  • Output: 4 x 16-bit data.
  • Optional: 4 x 8-bit Control / Status.
  • Output: 8 x 16-bit data.
  • Optional: 8 x 8-bit Control / Status.

Conversion Time

~4ms

~8ms

Current Consumption from Standard Bus

Typ: 20mA

Electrical Isolation

500Vrms (Standard Bus / Signal Voltage).



EMC Immunity / Emission

Conforms to EN 61000-6-2 / EN 61000-6-4.



Load

< 350Ω (short-circuit-proof).

< 150Ω (short-circuit-proof).

Measuring Error

< ±0.1 % (relative to full scale value).

< ±0.2 % (relative to full scale value).

Number of Outputs

4

8

Operating / Storage Temperature

  • Operating: 0 °C to +55 °C.
  • Storage: -25 °C to +85 °C.



Pluggable Wiring

For all Bus Terminals.



Power Supply

24VDC using the power contacts.



Protect Class / Installation pos.

IP 20 / variable.



Relative Humidity

95%, no condensation.



Resolution

12-bits



Signal Voltage

0 to 20mA



Vibration / Shock Resistance

Conforms to EN 60068-2-6 / EN 60068-2-27/ 29.



Weight

75g
