AKT2G-DN-008-000
8-channel Digital Input Terminal 24 V DC, filter 3.0 ms, 1-wire system
The DN-008 digital input terminal acquires binary control signals from the process level and transmit them, in an electrically isolated form, to the higher-level automation device. The digital input terminals of the DN-008 feature an input filter (3 ms) and indicate their signal state through an LED for each channel.
LEDs
| LED | Color | Meaning | |
|---|---|---|---|
|
INPUT 1- 8 |
green |
off |
Signal voltage "0" (-3 V ... 5 V) |
|
on |
Signal voltage "1" (11 V ... 30 V) |
||

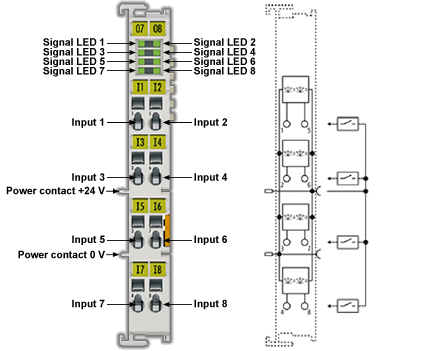

Connection
| Terminal Point | Description | |
|---|---|---|
| Name | No. | |
|
Input 1 |
1 |
Input 1 |
|
Input 3 |
2 |
Input 3 |
|
Input 5 |
3 |
Input 5 |
|
Input 7 |
4 |
Input 7 |
|
Input 2 |
5 |
Input 2 |
|
Input 4 |
6 |
Input 4 |
|
Input 6 |
7 |
Input 6 |
|
Input 8 |
8 |
Input 8 |
Technical Data
|
Technical Data |
AKT2G-DN-008-000 |
|---|---|
| Number of inputs | 8 |
| Number of simultaneously controllable in- puts, depending on the ambient temperature | 8 (-25°C ... +55°C) 4 (> +55°C ) (aligned in horizontal installation position Position means a point in space which is described by different coordinates.
Depending on the used system and transformation it can consist of a maximum of six dimensions (coordinates).This means three Cartesian coordinates in space and coordinates for the orientation.
In ACS there can be even more than six coordinates.
If the same position is described in different coordinate systems the values of the coordinates are different.) |
| Nominal voltage of the inputs | 24 VDC (-15% / +20%) |
| Signal voltage "0" | -3 V ... 5 V (EN 61131-2, type 1/3) |
| Signal voltage "1" | 11 V ... 30 V (EN 61131-2, type 1/3) |
| Input filter | 3 ms |
| Input current | typically 3 mA (EN 61131-2, type 1/3) |
| Current consumption power contacts | typ. 2 mA + load |
| Current consumption via E-bus | typ. 90 mA |
| Electrical isolation | 500 V (E-bus/field voltage) |
| Bit width in the process image | 8 input bits |
| Configuration | no address setting, configuration via KAS-IDE Kollmorgen Automation Suite - Integrated Development Environment |
| Weight | approx. 55 g |
| Permissible ambient temperature range during operation | -25°C ... +60°C (extended temperature range, aligned in horizontal installation position) -25°C ... +45°C (all other installation positions) |
| Permissible ambient temperature range during storage | -40°C ... +85°C |
| Permissible relative humidity | 95%, no condensation |
| Dimensions (W x H x D) | approx. 15 mm x 100 mm x 70 mm (width aligned: 12 mm) |
| Mounting | on 35 mm mounting rail conforms to EN 60715 |
| Vibration/shock resistance | according to EN 60068-2-6/EN 60068-2-27, see also Installation instructions for terminals with increased mechanical load capacity |
| EMC resistance burst/ESD | conforms to EN 61000-6-2 / EN 61000-6-4 |
| Protection class | IP20 |
| Installation position | see note Constraints regarding installation position and operating temperature range |
| Approval | CE, cULus, ATEX, IECEx |
