Usage Example of Axis Functions

Axis Functions Usage

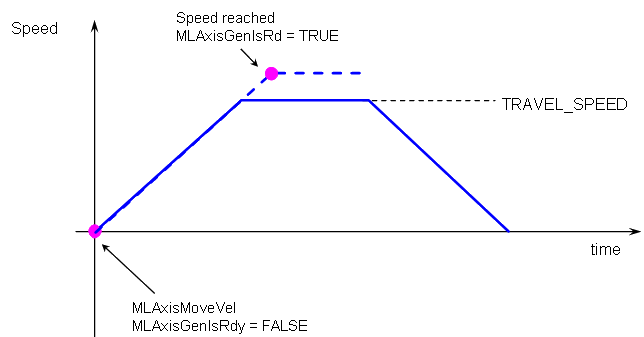

MLAxisMoveVel(Speed) starts to run the axis. Then MLAxisGenIsRdy returns TRUE when the Speed is reached.

Axis Functions Usage

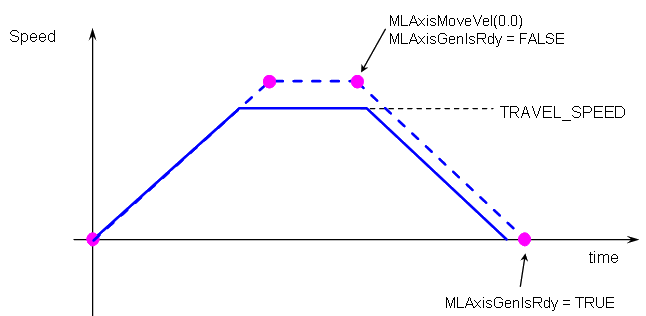

MLAxisMoveVel(0.0) reduces the speed down to 0. Then MLAxisGenIsRdy returns TRUE once the axis is ready.

Axis Functions Usage

Figure 11-81: Axis Functions Usage
