How the Pipe Network interacts with PLC programs

Each Pipe Block is supported by several ML function blocks in the function block Library. As soon as you add a Pipe Block, it is included as well in the Variable Editor.

• Add the FB into your program (see procedure here)
• Select the variable to update

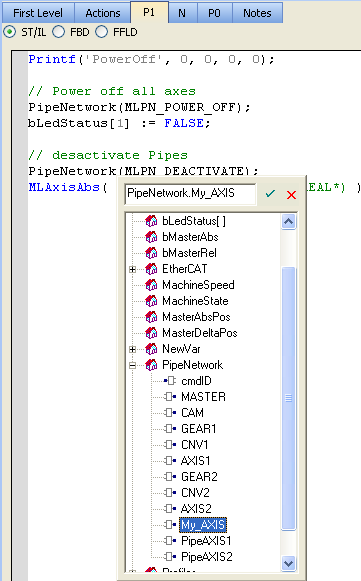

• Press CTRL+SPACE to open the Variable Editor
• Expand the PipeNetwork node and select the name of the Pipe Block in the list
  (all the Pipe Blocks created in the Pipe Network are listed)


  Then your ST"Structured text" A high-level language that is block structured and syntactically resembles Pascal instruction is updated

•


• When you add a new Block in the Pipe Network, you first need to compile your project to make the block visible in the list of items.

• Click theicon to update your code
