EtherCAT Scan & Association Example 2 - Adding Physical I/O Slices

In this example another physical I/O slice is added to the coupler.

To update the network topology:

1. In the Project Explorer, double-click the EtherCATEtherCAT is an open, high-performance Ethernet-based fieldbus system. The development goal of EtherCAT was to apply Ethernet to automation applications which require short data update times (also called cycle times) with low communication jitter (for synchronization purposes) and low hardware costs node to open its Properties and click the Scan Devices button in the Devices tab.
   Alternatively, right-click on the EtherCAT node in the Project Explorer, and select Scan Devices.

2. The Discovered Devices and Modules dialog box appears after a successful scan.

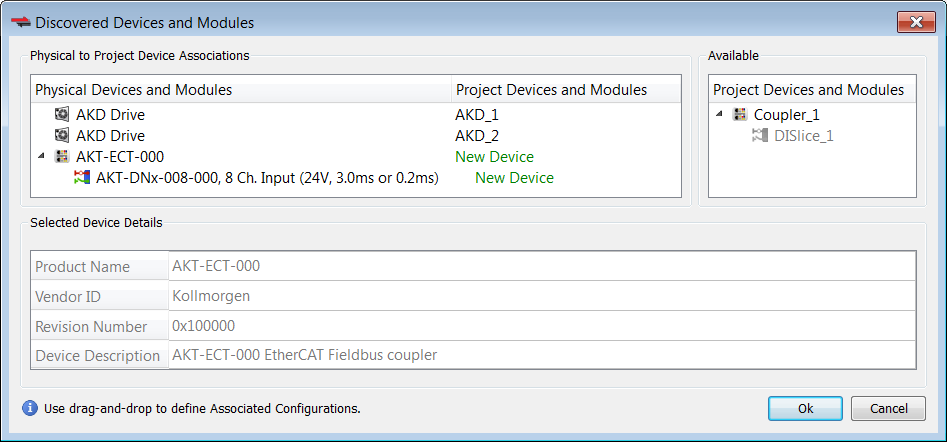

3. Click the Modify button to open the expanded view.

4. To associate the coupler and I/O slice configurations with the physical coupler and I/O slice:

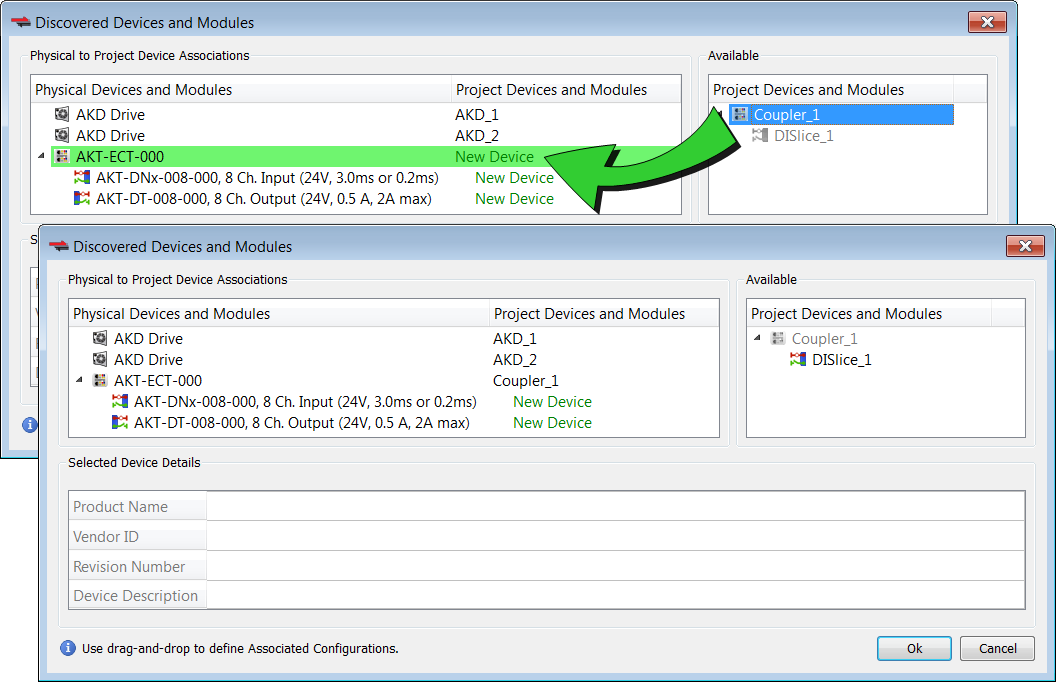

   1. Drag-and-drop Coupler_1 from Available to the physical coupler (AKT-ECT-000).

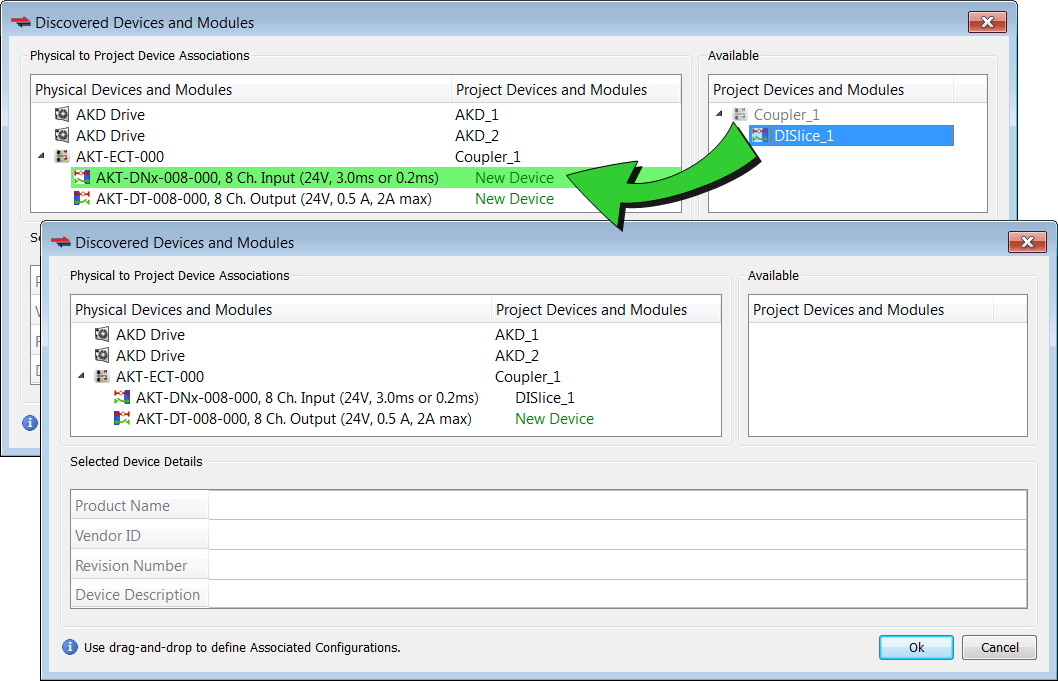

   2. Drag-and-drop DISlice_1 from Available to the physical I/O slice (AKT-DNx-008-000).

5. Click OK to confirm the modified association.

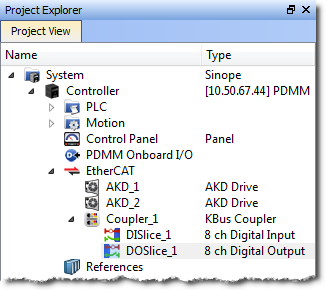

The KAS IDE"Integrated development environment" An integrated development environment is a type of computer software that assists computer programmers in developing software. IDEs normally consist of a source code editor, a compiler and/or interpreter, build-automation tools, and a debuggercreates the EtherCAT node for the added I/O slice in the Project Explorer to match the physical I/O slice:
