Sig_Gen

Function BlockA function block groups an algorithm and a set of private data. It has inputs and outputs. - Generator of pseudo-analogical Signal

Inputs

RUN : BOOL Enabling command

PERIOD : TIME Signal period

MAXIMUM : DINT Maximum growth during the signal period

Outputs

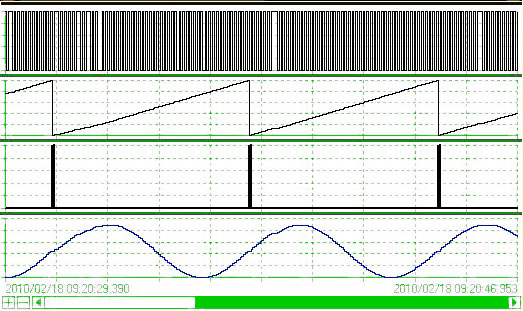

This FB generates signals of the four following types:

PULSE: blinking at each period
UP : growing according max * period
END : pulse after max * period
SINE : sine curve

FFLD Language
