DTGetTimeZone

Function Block - Read the Time Zone.

This function block is specific for PCMM2G only.

Inputs

Input	Data Type	Range	Unit	Default	Description
Execute	BOOL	FALSE, TRUE	N/A	No default	If TRUE, request to read the time zone.

Outputs

Output	Data Type	Range	Unit	Description
Done	BOOL	FALSE, TRUE	N/A	If TRUE, the command completed successfully.
Error	BOOL	FALSE, TRUE	N/A	If TRUE, an error has occurred.
ErrorID	DINT	No range	N/A	Indicates the error if the Error output is set to TRUE. Error Codes 23 = Internal error. See the controller log for details. 15000 = Controller type does not support this function block.
TimeZone	STRING	No range	N/A	The time zone the controller should use.

Remarks

None

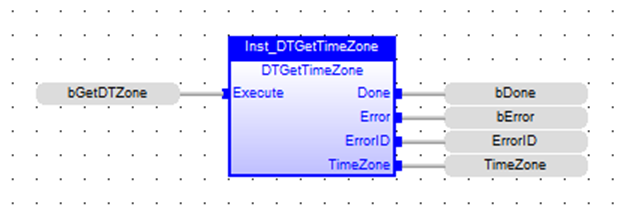

FBD Language Example

FFLD Language Example

IL Language Example

Not available.

ST Language Example

// read the configured time zone
Inst_DTGetTimeZone( bGetDTZone );
if Inst_DTGetTimeZone.Done then
   bGetDTZone := false;

   if NOT Inst_DTGetTimeZone.Error then
      TimeZone := Inst_DTGetTimeZone.TimeZone;
   else
      ErrorID := Inst_DTGetTimeZone.ErrorID;
   end_if;
end_if;
