AKT-DT-2RT-000

General Specifications

2-channel relay output terminals 230VAC, 2A.

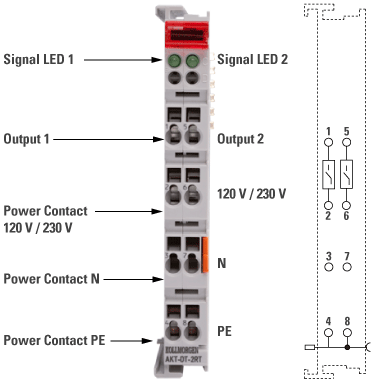

2-channel output terminal has two relays, each with a single contact.
- The relay contact is connected to the power contacts.
- These contacts are suitable for use at up to 230VAC and can be used for switching devices requiring mains power.
The Bus Terminal indicates its signal state by means of a light emitting diode.
The Bus Terminals have potential-free contacts.
The power contacts are not looped through.

Electrical and Mechanical Specification	AKT-DT-2RT-000
Bit Width in the Process Image	2 outputs
Configuration	No address or configuration settings.
Current Consumption from Standard Bus	85mA
Electrical Isolation	500V_rms (Standard Bus / Field Potential)
EMC Immunity / Emission	Conforms to EN 61000-6-2 / EN 61000-6-4.
Inductive Switching Current	2A AC/DC
Lamp Test, Electronic Ballast	4 x 58W
Minimum Permitted Load	10mA at 5VDC
Number of Outputs	2 x make contacts
Ohmic Switching Current	5A AC/DC
Operating Cycles Electrical (min.)	1 x 10⁵ (5A/30VDC)
Operating Cycles Mechanical (min.)	2 x 10⁷
Operating / Storage Temperature	Operating: 0 °C to +55 °C. Storage: -25 °C to +85 °C.
Pluggable Wiring	For all Bus Terminals.
Protect Class / Installation pos.	IP 20 / variable.
Rated Load Voltage	230VAC 30VDC
Relative Humidity	95%, no condensation.
Vibration / Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27/29.
Weight approx.	80g
