Configure an EtherCAT

This section provides information for the EtherCAT entry in the Project Tree.

• Specifically this includes these tabs:
  • EtherCAT Devices tab
  • EtherCAT Master Settings tab
  • ENI File tab
  • ESI Files tab
  • FSoE / PDO Connections tab

Double-click an EtherCAT item in the Project Tree or right-click and select Properties to access these tabs.

Reference information for devices in the project can be found in EtherCAT Devices.

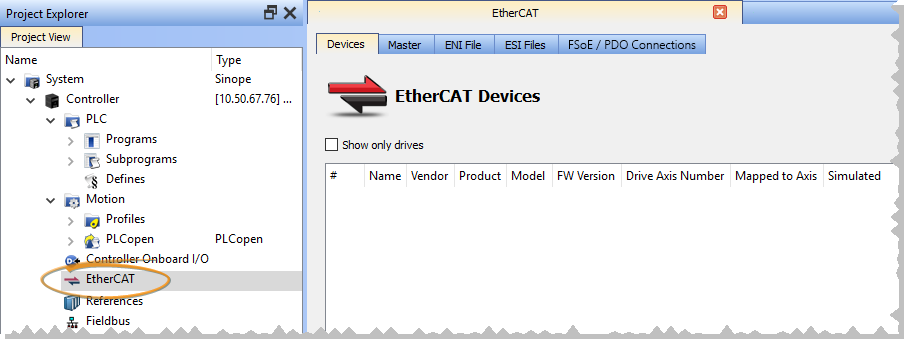

Figure 1: EtherCAT area of the KAS-IDE
