Structures

All the structures within the entire system project are grouped as follows:

Structure

Description

EtherCATCode

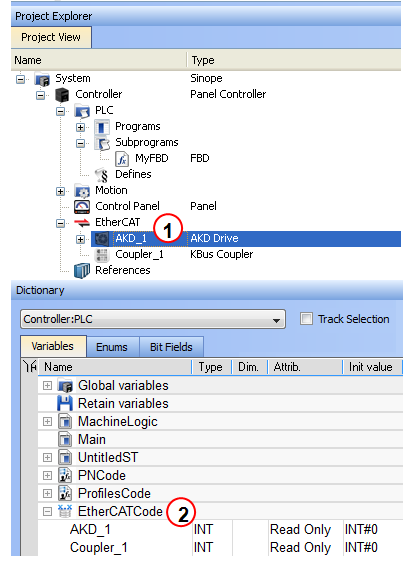

List all the devices as PLC variables so you can use their names in FBs instance

  • The devices are displayed under the EtherCAT node in the Project Explorer (see call out )
  • The same devices are also displayed as PLC variables in the Dictionary

  • You can use them in your PLC programs with a drag-and-drop operation



PNCode

List all the variables related to the specific Pipe Network Code

ProfilesCode

List all the variables related to the specific profiles

PLCopenCode

List all the variables related to the specific PLCopen Code

UDFB variables

List the variables related to a specific UDFB
