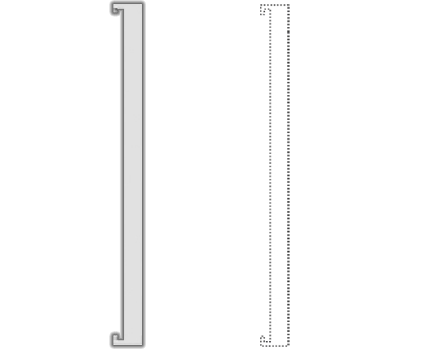

AKT2G-EM-000-000
EtherCAT Bus End Cover for E-bus terminals, power, and E-bus contacts
Bus end cover for E-bus terminals, cover for power and E-bus contacts. This item has no electrical signals, it simply provides a barrier to the side bus connections.
Each EtherCAT terminal block must be terminated at the right hand end with a AKT2G-EM-000-000 bus end cap due to mechanical and electrical protection.
|
Technical Data |
AKT2G-EM-000-000 |
|---|---|
| Electrical isolation | - |
| Bit width in the process image | 0 |
| Configuration | no address or configuration settings |
| Diagnosis | - |
| PE contact | no |
| Renewed infeed | - |
| Connection facility to additional power contact | - |
| Side by side mounting on Bus Terminals with power contact | yes |
| Side by side mounting on Bus Terminals without power contact | yes |
| Electrical connection to mounting rail | no |
| Weight | approx. 8 g |
| Permissible ambient temperature | -25°C ... +60°C (extended temperature range) |
| Permissible ambient temperature range (during storage) | -40°C ... +85°C |
| Permissible relative humidity | 95%, no condensation |
| Dimensions (W x H x D) | approx. 8 mm x 100 mm x 34 mm (width aligned: 5 mm) |
| Mounting | aligned to the last terminal in the terminal block |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC resistance burst/ESD | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Installation position | variable |
| Approval | CE, ATEX, cULus |
