OPC UA - Move Variables

Use this procedure to move:

  • Selected groups up or down.
  • Selected variables in the current group up or down.

Procedure

  1. In the OPC UA - Add TAG(s)* dialog box, in the Group/Variable table, select a variable.
    (Figure 1)

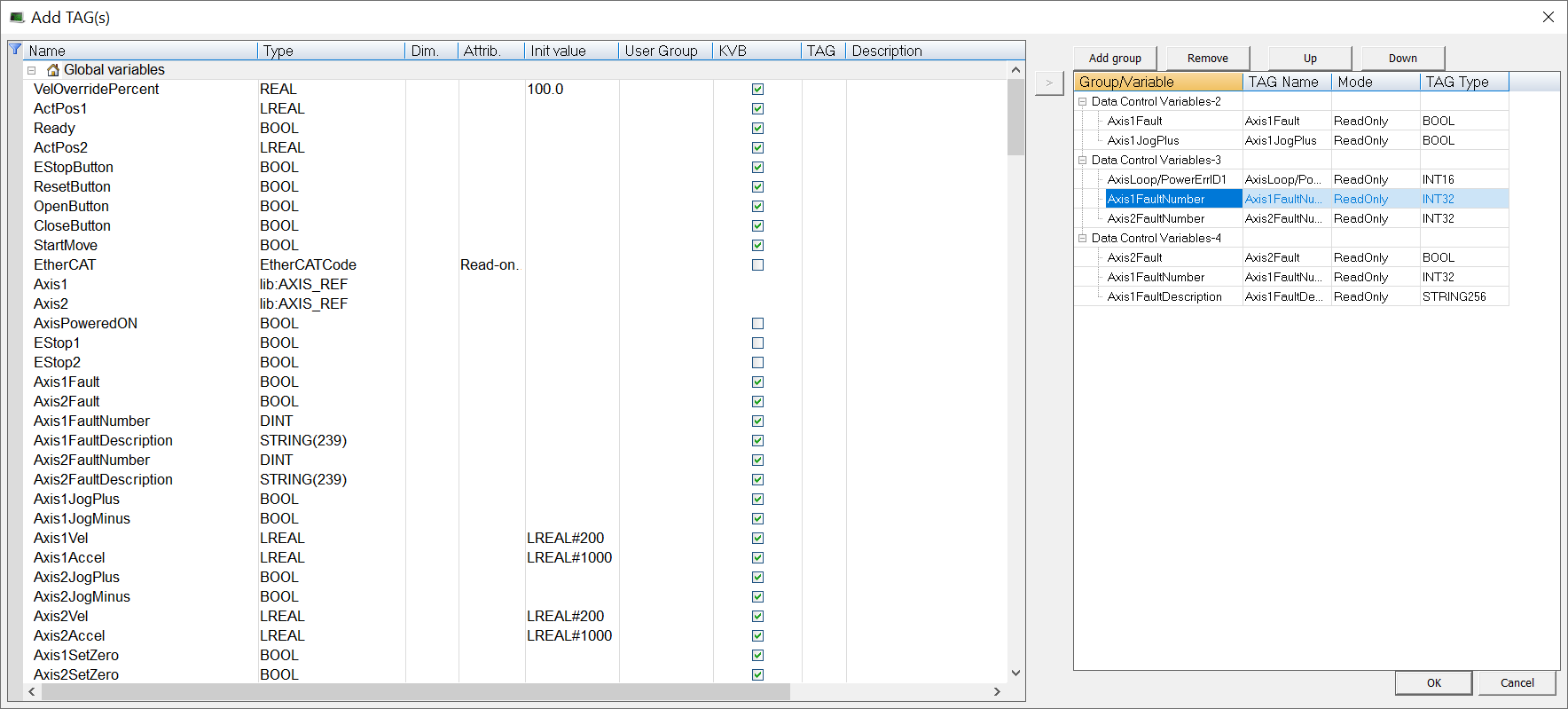

    2. Figure 1: Selected variable

  2. Either:
    • Click the Up button to move the selected item in the Group/Variable table up.
    • Click the Down button to move the selected item in the Group/Variable table down.

    3. The variable moves in the designated direction. (Figure 2)

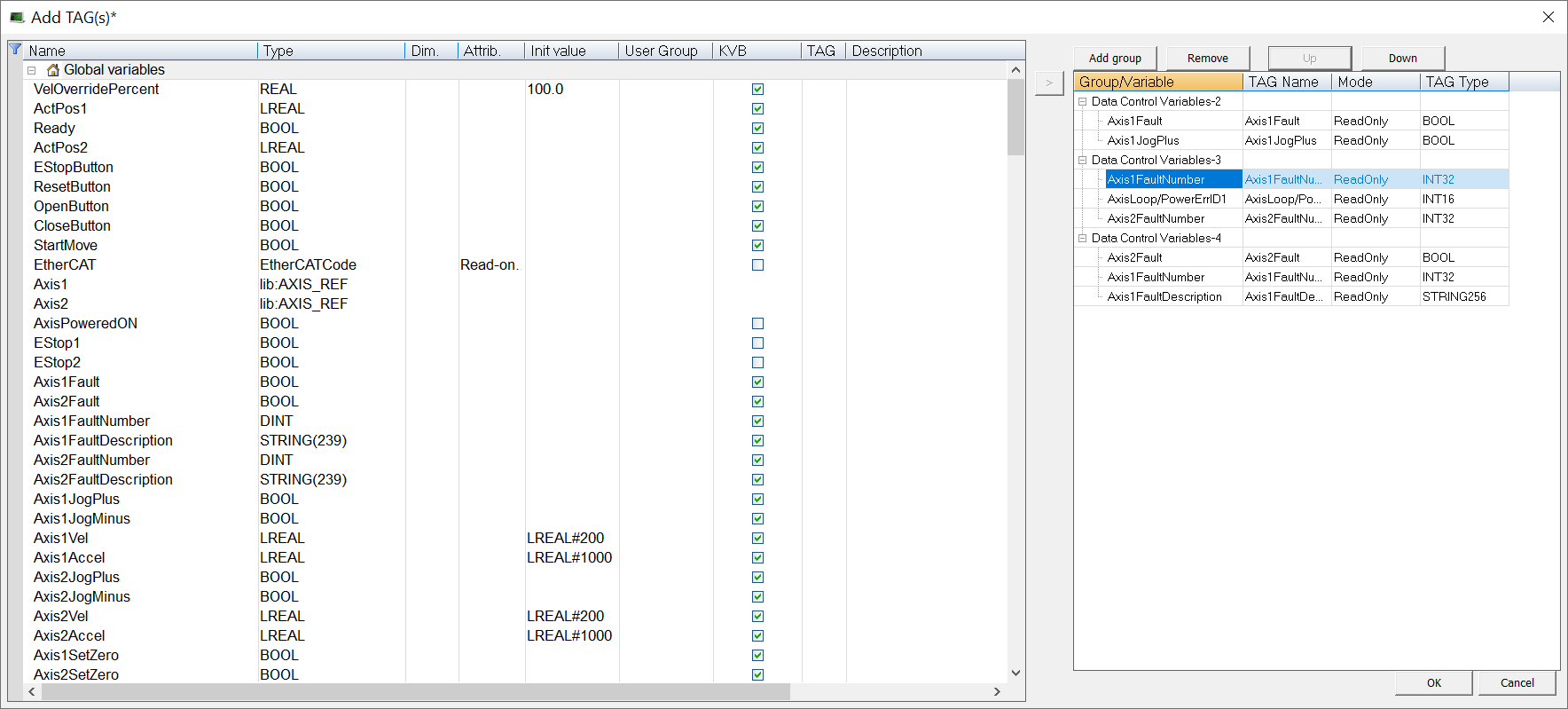

    Figure 2: Variable moved up

  3. Click OK to save the changes or selections and close the dialog box.
    A confirmation message appears.
  4. Click OK to continue.
    The edited groups or variables are updated in the Fieldbus Editor.
