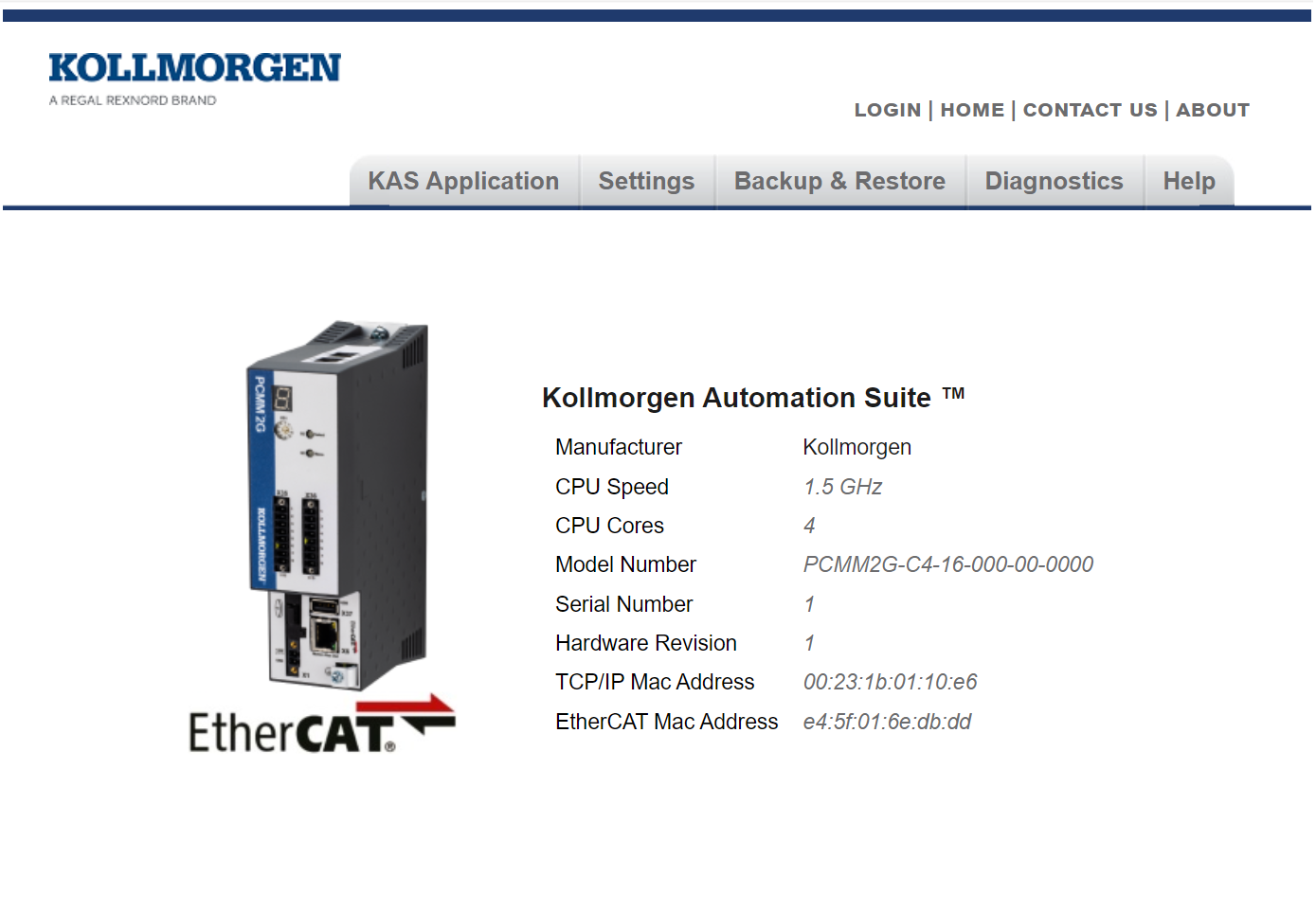

Web server Home page

To access the KAS Web server home page, enter the controller's IP address.

This page provides an overview of the device including:

• Manufacturer
• CPU Speed
• CPU Cores
• Model Number
  • See Controllers.
• Serial Number
• Hardware Revision
• TCP/IP MAC Address: A unique value associated with the TCP/IP network adapter that uniquely identifies the adapter on a LAN.
• EtherCAT MAC Address: A unique value associated with the EtherCAT network adapter that uniquely identifies the adapter on an EtherCAT network.

•


• Unless otherwise noted, any reference to AKD PDMM or PCMM refers to both the 800MHz and the single- and dual-core 1.2GHz variants.
