RAD_TO_DEG

This function/function block was added in KAS v4.04

 Function - Converts a radian value to a degree value.

Inputs

Input	Data Type See Data Types.	Range	Unit	Default	Description
IN	LREAL	No range	Radian	No default	Radian value.

Outputs

Output	Data Type See Data Types.	Range	Unit	Description
Q	LREAL	No range	Degree	Degree value equivalent to the radian input.

FBD Language Example

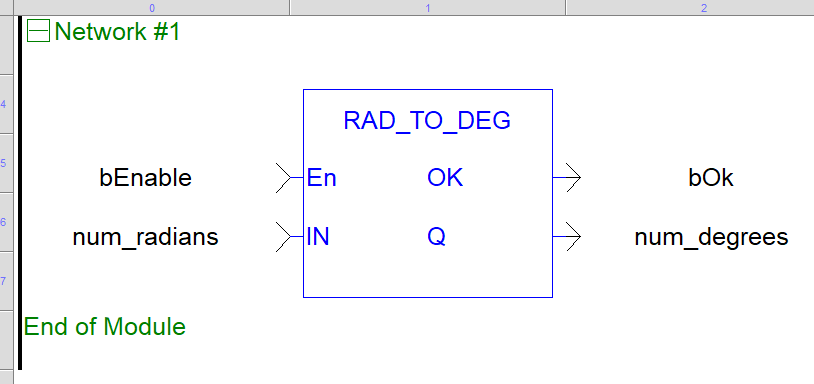

FFLD Language Example

• In the FFLD Language, the operation is executed only if the input rung (EN) is TRUE.
  • The output rung (ENO) keeps the same value as the input rung.

IL Language Example

Not available.

ST Language Example

num_degrees := RAD_TO_DEG(num_radians);

See Also

DEG_TO_RAD
