DTL_To_LDT_UTC

 Function - Converts a field-expanded calendar date and time (DTL), expressed in Coordinated Universal Time (UTC), to a long date and time (LDT).

• The DTL input is treated as a UTC calendar date and time and converted to an LDT.
  • No time-zone or daylight-saving adjustment is applied.
• The representable range of LDT spans from 1677-09-21 to 2262-04-11 (UTC).
  • Inputs earlier than the minimum saturate output to the minimum representable value.
  • Inputs later than the maximum saturate output to the maximum representable value.
  • In both cases, Q is set to FALSE.
  • Use LDT_To_DTL_UTC to perform the reverse conversion.
  • For a local-time conversion, use DTL_To_LDT_Local.

Inputs

Input	Data Type See Data Types.	Range	Unit	Default	Description
input	DTL	See DTL Structure Members.	N/A	No default	The UTC calendar date and time to convert. See DTL Structure Members.
output	LDT	N/A	N/A	No default	A variable where the LDT timestamp is written.

Outputs

Output	Data Type See Data Types.	Range	Unit	Description
Q	BOOL	FALSE, TRUE	N/A	If TRUE, the conversion completed successfully. If FALSE, the input was either: invalid, outside the representable range and output is saturated to the nearest representable value.

DTL Structure Members

Member	Data Type	Range	Description
Year	UINT	1677 to 2262	The calendar year.
Month	USINT	1 to 12	The calendar month.
Day	USINT	1 to 31	The calendar day of the month.
Hour	USINT	0 to 23	The hour of the day.
Minute	USINT	0 to 59	The minute of the hour.
Second	USINT	0 to 59	The second of the minute.
Nanosecond	UDINT	0 to 999,999,999	The sub-second part, in nanoseconds.

FBD Language Example

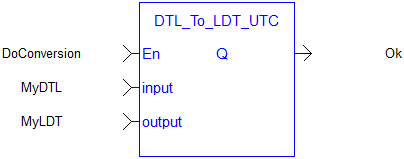

FFLD Language Example

IL Language Example

Not available.

ST Language Example

MyDTL.Year       := 2026;
MyDTL.Month      := 6;
MyDTL.Day        := 15;
MyDTL.Hour       := 12;
MyDTL.Minute     := 34;
MyDTL.Second     := 56;
MyDTL.Nanosecond := 123456789;

Ok := DTL_To_LDT_UTC(MyDTL, MyLDT);
IF Ok THEN
   // MyLDT now holds the specified timestamp.
END_IF;
