DirectoryClose

 Function Block - Closes an Open directory.

• Closing a directory releases its handle so it can be reused.
• Every directory opened with DirectoryOpen should be closed with DirectoryClose.

Inputs

Input	Data Type See Data Types.	Range	Unit	Default	Description
Execute	BOOL	FALSE, TRUE	N/A	No default	On the rising edge, request to close a directory.
ID	UDINT	No range	N/A	No default	The ID of the open directory returned by DirectoryOpen.

Outputs

Output	Data Type See Data Types.	Range	Unit	Description
Done	BOOL	FALSE, TRUE	N/A	If TRUE, the command completed successfully.
Error	BOOL	FALSE, TRUE	N/A	If TRUE, an error has occurred.
ErrorID	DINT	Enumerated	N/A	Indicates the error if Error output is TRUE. See the table in File, Recipe, and TCP/IP Function Block ErrorIDs.

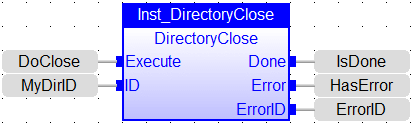

FBD Language Example

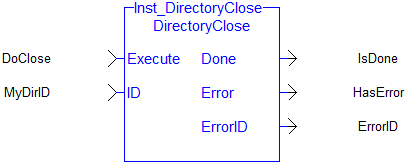

FFLD Language Example

IL Language Example

Not available.

ST Language Example

CASE StepCounter OF
0:
   Inst_DirectoryOpen(TRUE, 'logs', '*.log', DIR_OPTION_FILES + DIR_OPTION_GLOB);
   IF Inst_DirectoryOpen.Done THEN
      MyDirID := Inst_DirectoryOpen.ID;
      Inst_DirectoryOpen(FALSE, '', '', 0);
      StepCounter := StepCounter + 1;
   END_IF;
1:
   Inst_DirectoryRead(TRUE, MyDirID);
   StepCounter := StepCounter + 1;
2:
   Inst_DirectoryRead(TRUE, MyDirID);
   IF Inst_DirectoryRead.Done THEN
      IF Inst_DirectoryRead.ListDone THEN
         // No more entries - move on to next step closing the directory
         Inst_DirectoryRead(FALSE, 0);
         StepCounter := StepCounter + 1;
      ELSE
         EntryName := Inst_DirectoryRead.Entry.Name;
         IsDir     := Inst_DirectoryRead.Entry.IsDirectory;
         // Keep StepCounter unchanged so that return and read the next entry
         Inst_DirectoryRead(FALSE, 0);
      END_IF;
   END_IF;
3:
   Inst_DirectoryClose(TRUE, MyDirID);
   StepCounter := StepCounter + 1;
4:
   Inst_DirectoryClose(TRUE, MyDirID);
   IF Inst_DirectoryClose.Done THEN
      Inst_DirectoryClose(FALSE, 0);
      StepCounter := StepCounter + 1;
   END_IF;
END_CASE;
