DirectoryRead

 Function Block - Reads the next entry from an open directory.

• The directory must first be opened with DirectoryOpen.
• Entries are filtered according to the Options and Filter supplied to DirectoryOpen.
• Each successful execution returns information about a single directory entry through the Entry output.
• Repeatedly execute DirectoryRead on the same directory ID to iterate over all entries.
• When there are no more entries, ListDone is set to TRUE and the Entry output is not updated.

Inputs

Input	Data Type See Data Types.	Range	Unit	Default	Description
Execute	BOOL	FALSE, TRUE	N/A	No default	On the rising edge, read the next directory entry.
ID	UDINT	No range	N/A	No default	The ID of the open directory returned by DirectoryOpen.
Entry	DIR_ENTRY	No range	N/A	No default	The directory entry to be filled. Only valid when Done is TRUE and ListDone is FALSE. See DIR_ENTRY Structure.

Outputs

Output	Data Type See Data Types.	Range	Unit	Description
Done	BOOL	FALSE, TRUE	N/A	If TRUE, the command completed successfully.
Error	BOOL	FALSE, TRUE	N/A	If TRUE, an error has occurred.
ErrorID	DINT	Enumerated	N/A	Indicates the error if Error output is TRUE. See the table in File, Recipe, and TCP/IP Function Block ErrorIDs.
ListDone	BOOL	FALSE, TRUE	N/A	If TRUE, all entries have been read and no further entries are available. When ListDone is TRUE, the Entry output is not updated.

DIR_ENTRY Structure

Member	Data Type	Description
Name	STRING(255)	The name of the entry (file or subdirectory), without the directory path.
IsDirectory	BOOL	TRUE if the entry is a subdirectory. FALSE if it is a regular file.
Size	ULINT	The size of the entry in bytes. Valid for files. 0 (zero) for directories.
ModifyTime	LDT	The last modification time of the entry.

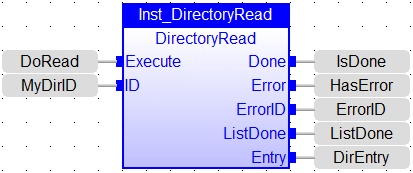

FBD Language Example

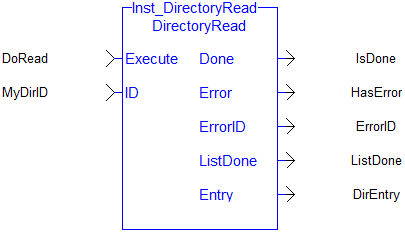

FFLD Language Example

IL Language Example

Not available.

ST Language Example

CASE StepCounter OF
0:
   Inst_DirectoryOpen(TRUE, 'logs', '*.log', DIR_OPTION_FILES + DIR_OPTION_GLOB);
   IF Inst_DirectoryOpen.Done THEN
      MyDirID := Inst_DirectoryOpen.ID;
      Inst_DirectoryOpen(FALSE, '', '', 0);
      StepCounter := StepCounter + 1;
   END_IF;
1:
   Inst_DirectoryRead(TRUE, MyDirID);
   StepCounter := StepCounter + 1;
2:
   Inst_DirectoryRead(TRUE, MyDirID);
   IF Inst_DirectoryRead.Done THEN
      IF Inst_DirectoryRead.ListDone THEN
         // No more entries - move on to next step closing the directory
         Inst_DirectoryRead(FALSE, 0);
         StepCounter := StepCounter + 1;
      ELSE
         EntryName := Inst_DirectoryRead.Entry.Name;
         IsDir     := Inst_DirectoryRead.Entry.IsDirectory;
         // Keep StepCounter unchanged so that return and read the next entry
         Inst_DirectoryRead(FALSE, 0);
      END_IF;
   END_IF;
3:
   Inst_DirectoryClose(TRUE, MyDirID);
   StepCounter := StepCounter + 1;
4:
   Inst_DirectoryClose(TRUE, MyDirID);
   IF Inst_DirectoryClose.Done THEN
      Inst_DirectoryClose(FALSE, 0);
      StepCounter := StepCounter + 1;
   END_IF;
END_CASE;
