Change Function Blocks in FFLD and FBD Editors

Double-clicking on the name of a function block in the FFLD or FBD"Function block diagram" A function block diagram describes a function between input variables and output variables. A function is described as a set of elementary blocks Editors allows you to select a different function block from a list of other FB instances.

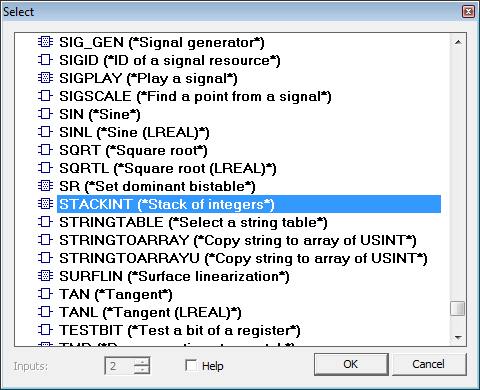

Double-clicking on the main area of a function block in the FFLD or FBD editors allows you to change to a different operator, function, or function block. Please be aware of any assigned variables which will likely need modification.

Please note that this list includes numerous functions that are not valid for KAS. They are either not supported or have been deprecated.
