Command
Description
Custom IO Editor
Show the I/O Editor
Oscilloscope
Show the soft oscilloscope
Compile (Ctrl + B)
Compile the whole project
Open the User Options dialog box.
|
Command |
Description |
|
Custom IO Editor |
Show the I/O Editor |
|
Oscilloscope |
Show the soft oscilloscope |
|
Compile (Ctrl + B) |
Compile the whole project |
| User Options |
Open the User Options dialog box. |
Table 4-5: Tools Menu Commands

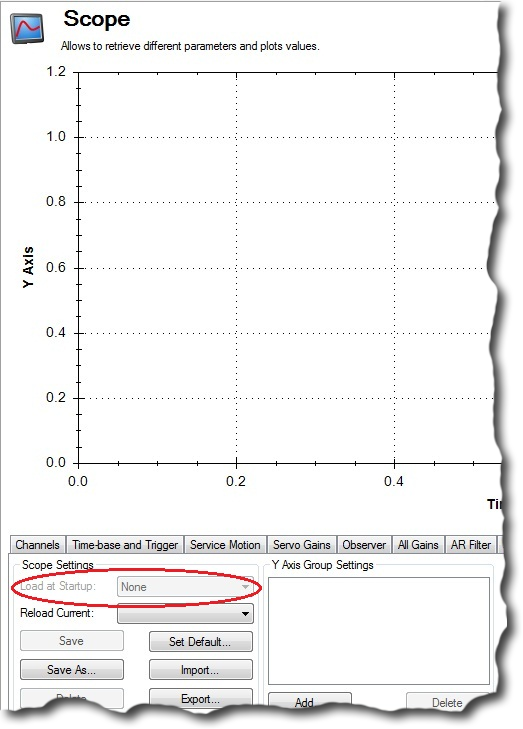

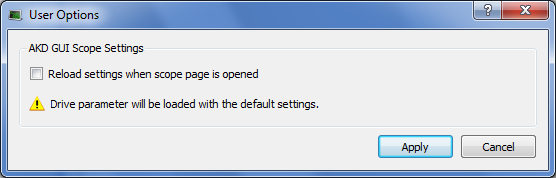

The check box found in this dialog enables/disables the “Load at startup” option in the AKD GUI"Graphical User Interface"
A GUI is a type of user interface which allows people to interact with a computer and computer-controlled devices Scope “settings” tab.
|
