Feedback Connector X1, X2

  • 4 pin, pitch 7.62 mm plus 2x2 pin pitch 3.81 mm
  • Input for commutation feedback: SFD3, DSL, SFA

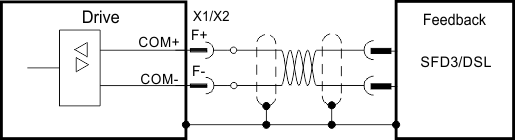

Wiring example SFD3 or HIPERFACE DSL



Wiring example conventional Feedback types with SFA



Pin

 Signal Description

F+

COM+

SFD3 +, HIPERFACE DSL +, SFA +

F-

COM-

SFD3 -, HIPERFACE DSL -, SFA -
