AKT-DT-008-000

General Specifications

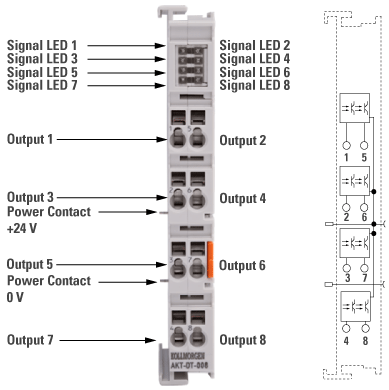

8-channel digital output terminal 24VDC.

8-channel digital output terminals connect the binary control signals from the automation unit on to the actuators A mechanical device for moving or controlling a mechanism or system. An actuator typically is a mechanical device which transforms an input signal (usually an electrical signal) into motion at the process level with electrical isolation.
- They are protected against reverse polarity connection.
- They handle load currents with outputs protected against overload and short circuit.
Bus Terminals contain eight channels which indicate their signal state with light-emitting diodes.
- This is suitable for space saving installation in control cabinets.
Connection technology is suitable for single-ended inputs.
All components have to use the same reference point.
Outputs are supplied by the 24V power contact.

Electrical and Mechanical Specification	AKT-DT-008-000
Bit Width in the Process Image	8 outputs
Configuration	No address or configuration settings.
Current Consumption Power from Contacts	Typ. 60mA
Current Consumption from Standard Bus	Typ. 18mA
Electrical Isolation	500V_rms (Standard Bus / Field Potential)
EMC Resistance Burst / ESD	Conforms to EN 61000-6-2 / EN 61000-6-4.
Load Type	Ohmic, inductive, lamp load
Maximum Output Current	0.5A (short-circuit-proof) per channel Total current 3A.
Number of Outputs	8
Operating / Storage Temperature	Operating: 0 °C to +55 °C. Storage: -25 °C to +85 °C.
Pluggable Wiring	For all Bus Terminals.
Protect Class / Installation pos.	IP 20 / variable.
Rated Load Voltage	24V_DC (-15% to + 20%)
Relative Humidity	95%, no condensation.
Reverse Voltage Protection	Yes
Vibration / Shock Resistance	Conforms to EN 60068-2-6 / EN 60068-2-27/ 29.
Weight approx.	70g
