Motor Management

The stepper motor allows operators to perform accurate positioning. The stepper motor can be controlled in two ways:

  1. Open loop modality (traditional use of stepper motor without a feedback sensor)

  2. Closed loop modality (where the stepper motor uses control loops based off a feedback sensor)

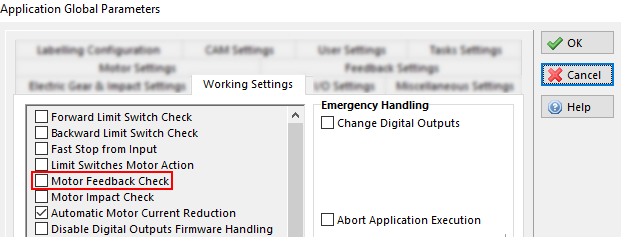

Select the loop modality with the Drive_Working_Settings.Motor Feedback_Check bit.

Graphical user interface, application, Word Description automatically generated
