MLFB_HomeFindHomeInputThenZeroAngle

Pipe Network motion icon

 Function Block - Homing to a home switch plus zero angle.

Inputs

Input

Data Type

Range

Unit

Default

Description

ibExecute

BOOL

FALSE, TRUE

N/A

No default

Start homing, edge-triggered.

iAxisID

DINT













ID of the axis block of the Pipe Network.

iPosition

LREAL













Reference position.

ibDirection

BOOL

0 to 1







N/A

No default

Defines the axis homing direction.

  • 0 (zero) = Positive.
  • 1 = Negative.

iVelocity

LREAL













Reference speed.

iAcceleration

LREAL













Reference acceleration.

iDeceleration

LREAL













Reference deceleration.

ibHomeInput

BOOL





N/A

No default

Home input, high-active.

ibPosLimitSwitch

BOOL





N/A

No default

Positive limit switch, high-active.

ibNegLimitSwitch

BOOL





N/A

No default

Negative limit switch, high-active.

iTimeout

TIME













Time monitoring (T#0ms: off).

Outputs

Output

Data Type

Range

Unit

Description

obDone

BOOL

FALSE, TRUE

N/A

Done bit.

obActive

BOOL

FALSE, TRUE

N/A

Active bit.

obError

BOOL

FALSE, TRUE

N/A

Error bit.

oErrorID

DINT





N/A

Error identifier:

ErrorID

Description

1

Axis in error.

2

Axis is not enabled.

3

Timeout exceeded or expired.

4

SDO read / write error.

5

Input parameter out of range.

Remarks

  • Similar to the Find Home Limit method.
    • The find input home then find zero angle.
    • Mode follows the same steps, but upon completion of the move, it continues to move to find the zero angle reference of the motor.

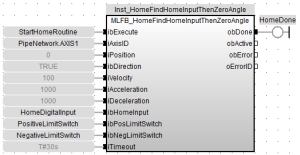

FBD Language Example

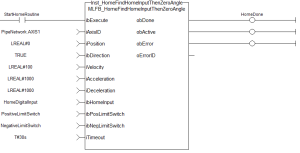

FFLD Language Example

IL Language Example

Not available.

ST Language Example

//Call homing function on Axis1 with preset velocity, accel, and decel values
//Start in negative direction, change if limit switch seen before home switch
//after seeing home switch and moving to zero angle, set axis position to zero
Inst_MLFB_HomeFindHomeInputThenZeroAngle( StartHomeRoutine,
   PipeNetwork.AXIS1,
   0,
   TRUE,
   100,
   1000,
   1000,
   HomeDigitalInput,
   PositiveLimitSwitch,
   NegativeLimitSwitch,
   T#30s );

HomeDone := Inst_MLFB_HomeFindHomeInputThenZeroAngle.obDone;
