MLFB_HomeFindLimitInputThenZeroAngle

Pipe Network motion icon

Function Block - Homing to a limit switch plus zero angle.

Inputs

Input	Data Type	Description
ibExecute	BOOL	Start homing, edge-triggered.
iAxisID	BOOL	ID of the axis block of the Pipe Network.
iPosition	BOOL	Reference position.
ibDirection	BOOL	0 (zero) = Positive. 1 = Negative.
iVelocity	BOOL	Reference speed.
iAcceleration	BOOL	Reference acceleration.
iDeceleration	BOOL	Reference deceleration.
ibLimitSwitch	BOOL	Positive or negative limit switch, high-active. Depends on the ibDirection.
iTimeout	BOOL	Time monitoring (T#0ms: off).

Outputs

Output

Data Type

Range

Unit

Description

obDone

BOOL

FALSE, TRUE

N/A

Done bit.

obActive

BOOL

FALSE, TRUE

N/A

Active bit.

obError

BOOL

FALSE, TRUE

N/A

Error bit.

oErrorID

DINT

N/A

Error identifier:

ErrorID	Description
1	Axis in error.
2	Axis is not enabled.
3	Timeout exceeded or expired.
4	SDO read / write error.
5	Input parameter out of range.

Remarks

Similar to the Find Input Limit method, the find input limit then find zero angle.
Mode follows the same steps, but upon completion of the move, it continues to move to find the zero angle reference of the motor.

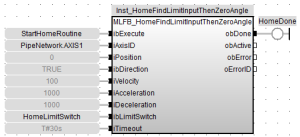

FBD Language Example

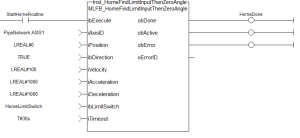

FFLD Language Example

IL Language Example

Not available.

ST Language Example

//Call homing function on Axis1 with preset velocity, accel, and decel values
//Start in negative direction and stop when axis hits limit switch or times out
//after seeing limit switch, moves to zero angle and set axis position to zero
Inst_MLFB_HomeFindLimitInputThenZeroAngle( StartHomeRoutine,
PipeNetwork.AXIS1,
0,
TRUE,
100,
1000,
1000,
HomeDigitalInput,
T#30s );

HomeDone := Inst_MLFB_HomeFindLimitInputThenZeroAngle.obDone;
